Products
Carbon Additives
Calcined Petroleum Coke (CPC)

Faster carbon pick up resulting lesser material consumption, better productivity and lesser power consumption.

Chemical
Fixed Carbon % Min 98.99
Volatile Matter % Max 5
Ash % Max 5
Sulphur % Max 1

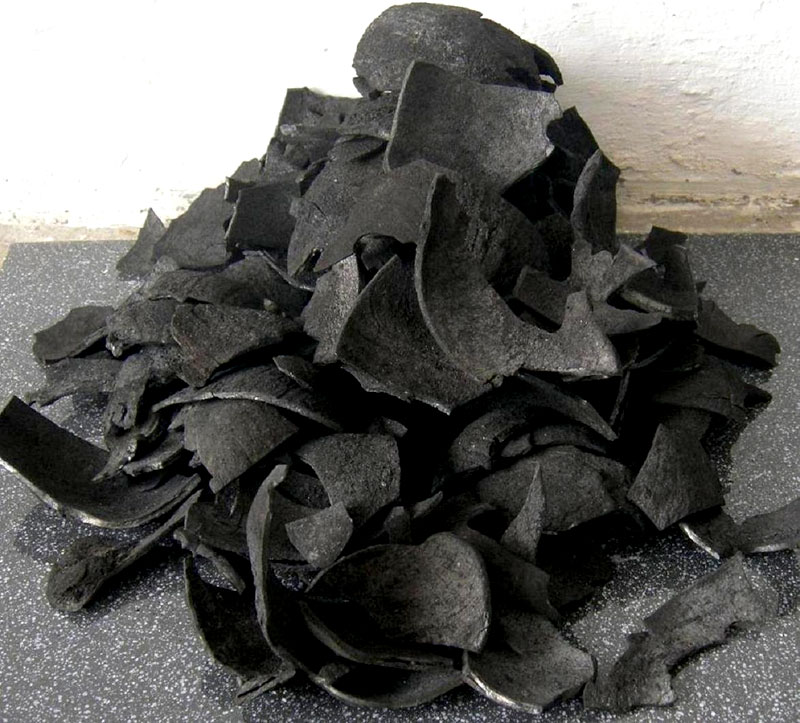

Coconut Shell (Shell Charcoal)

Coconut shell charcoal is used as carbon additive in Steel manufacturing and SG Iron castings for its zero sulphur content and fixed carbon of 78 % which gives more carbon recovery.

Specification Fixed Carbon 78 %
Moisture <10 %
Ash <4 %
Volatile Matter 10-12 %

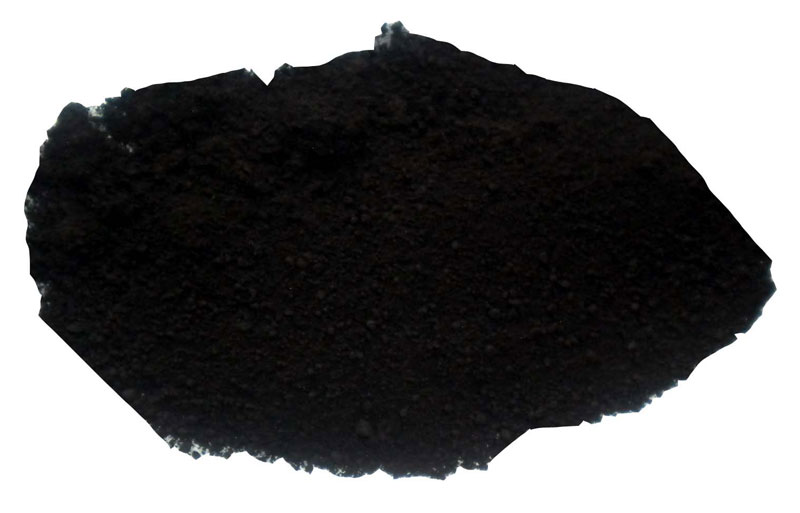

Coal Powder

Due to hgih ash content, Indian coal powder not useful in foundries. Due to this over the years, synthetic alternaives were first imported.



While these synthetic alternaitives are efficient, their cost is high. Now, we have a new economic alternative. Due to globalisation, best quality sea coal is sourced from arround the worlds, which we process to ensure natural low ash coal dust for the green sand in foundry.

Specification Fixed Carbon 78 %
Ash 5.00%
VMC 44.00%
FC 50.00%

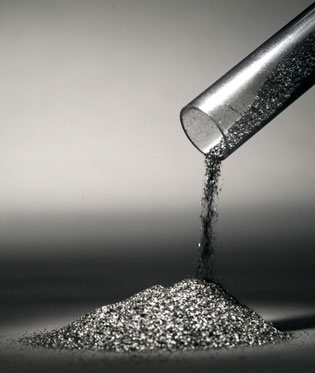

Graphite Flakes

Chemicas Properties:

  • Burns only at high temperature.
  • Normally unafected by acids, dry chloring gas or molten alkali at low red heat.
  • Strong oxidants such as mixture of hot nitric acid and potassuim chlorate will oxidize it completely.
Grade SPL L1 L1 L2 L3 SP/L4
Mesh Size
Fixed Carbon 85/87 % (1) 85/90 % (1) 80/85 % 85/90 % 92/94 %
  92/94 % (2)   (2) 85/90 %
Moisture Max. 1.00% 1.00% 1.00% 1.00% 1.00%
Voltage Matter Max 2/3 % 2/3 % 2/3 % 3/5 % ½ %
Ash Balance Balance Balance Balance Balance

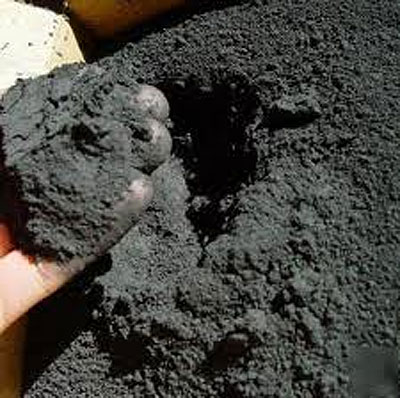

Graphite Powder

As our Crystalline Graphite is made from the best quality raw materials under the specific physical conditions, it is highly used in the various industries. This product is now being widely used in foundries in India and as well as being exported to foundries in African and Asian region.

Grade NO.2 No.3 A1 S2 S1
Mesh Size -200 -200 -200 -200 -200
  90-95 % 90-95 % 90-95 % 90-95 % 90-95 %
  Passing Passing Passing Passing Passing
Fixed Carbon 40/45 % 50/55 % 60/65 % 70/75 % 80/85 %
Moisture Max. 1.00 % 1.00 % 1.00 % 1.00 % 1.00 %
Voltage Matter Max 4 to 6 % 4 to 6 % 4 to 6 % 4 to 6 % 4 to 6 %
Ash Balance Balance Balance Balance Balance

Met Coke

Used in Induction Furnaces for carbon pickup

Carbon Size
65-70% 0-5mm

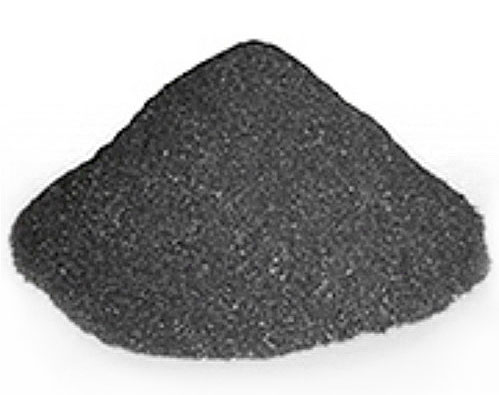

Pitch Coal

Petrolium base sand additives posseses superior compression strength reduce the problems like mould dialition, scabs, red tails, buckles, pinholes & blowhole it gives excellent surface finish in casting hence they are dimensionally accurate.
