Products

Refractories

We have with us a optimum quality range of Slide Gate Refractories to suit various slide gate applications. Designed in accordance with the defined international standards, these refractory material offers consistent and reliable performance. Moreover, we provide these slide gate refractories at market leading prices and in accordance with the customer's requirements.

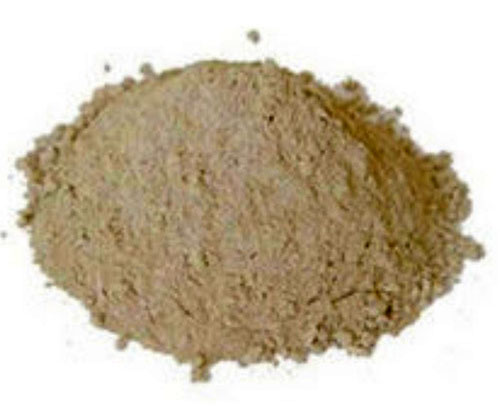

Accoset- 50

Particulars	Normal
General Properties
service temp. Degreee c (max)	1400
grain size mm (max. )	5
water reguired for casting (%)	10. 5-11. 5
Chemical Properties
al2o3	45
fe2o3	4
Physical Properties
bulk density (kg/m3)	2. 1
(dried at 110 degree c for 24 hrs. ) (min)
cold crushing strength (kg/cm2)	250
110 degreee c
800 degree c
1350 degree c	225
1450 degree c
Thermal Properties
refractoriness degreee (min)	1564
permanent linerar change (%)	1
at service temp (max. ) 1350 degree c/3 hrs

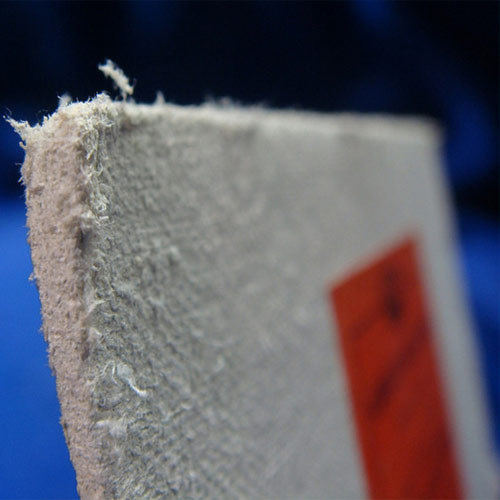

Asbestos Sheet

Asbestor sheets are used mainly during the lining of induction furnaces and other applications where insulation at high temperature is required. Theses asbestor sheets are available in size of 1 m x 1m and thickness 1. 5 mm, 3 mm, 4mm, 5mm, 6mm, and 12. 5 mm.

Product Description	Thickness (mm)	Size	Packaging
General purpose insulating material	1. 5 to 25	1 meter square	50 kgs or 100 kgs
Special quality for automotive gaskets and electrical industry	0. 8 to 3	1 meter square	50 kgs or 100 kgs

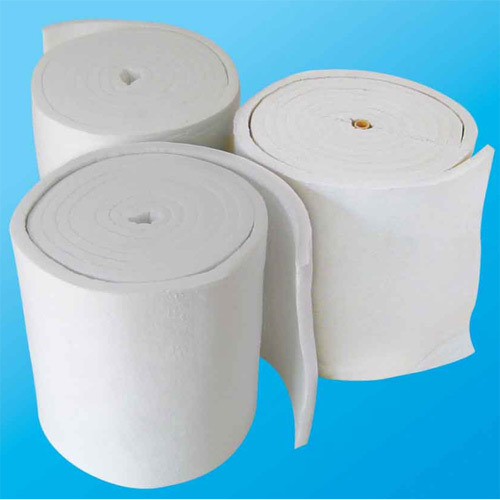

Insulation Blanket

We offers complete range of ceramic fibre blanket with following excellent properties. Ceramic fibre blanket are offered in standard length of 7620mm (7. 62 meters) and width of 610mm (0. 61) and various thickness of 12,25,38,50mm. Ceramic boards and ceramic modules are also part of the vision range and can be supplied as per customer specifications and application. Ceramic fibre blankets can be supplied in two standard densities viz (1) 96 kgs/m 3 (2) 128 kgs/m 3.

Chemical Properties of Ceramic Fibre Blanket

Specifications	(Htz) High Temp.	(Rtz) Reg. Temp.	(Rt) Reg. Temp.
	zro2 (16-19)	zro2 (4-6)
al 203	33-36	42-44	47-49
si02	44-18	51-53	51-53
zr02	16-19	-4. 6
fe 203	<0. 1	<0. 1	<0. 1
ti02	<0. 3	<0. 3	<0. 3
Leachable Chloride ppm	<10	<10	<10

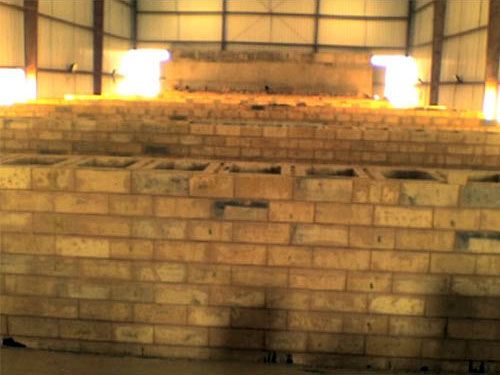

Fire Bricks

QUALITY	AI2 O3 (%) Min.	FE2 O3 (%) Max.	P.C.E. (O.C.) Min.	APPARTMENT POROSITY (%) Max.	CCS (Kg/cm2) Miin.	RUL (Ta degree C) Min.	BULK DENSITY (gm/cc) Min.
IS 6	30	2.8	29	26	200	1300	2
HHD	34	2.5	30	25	250	1350	2.05
40	40	3	31	23	300	1400	2.15
70	70	3.5	36	23	550	1460	2.65
80	79	1.8	37	20	650	1520	2.75

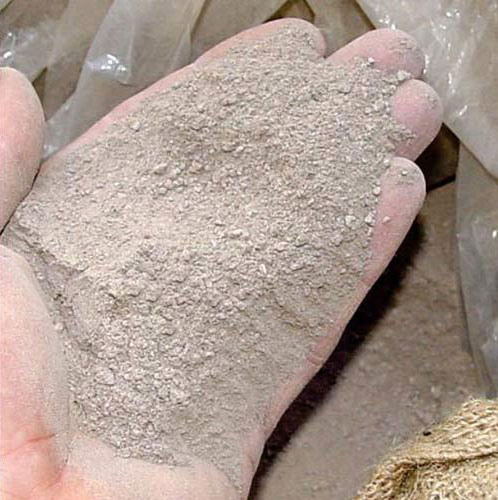

Fire Clay

Our refractory mortars i.e. fireclay mortaras and the high alumina mortars are primarily used for jointing the refractory fire bricks, fireclay bricks and the high alumina bricks. These fire clay mortars are put into best use for manufacturing insulation bricks. The mortars are used for laying the basic layout of the bricks.

Brand Name	Al2O3 % (min)	Fe2O3 (max)	Grading (mm)	Service Temperature (degree C)	Setting
DEC-30 M	30	2	0-1	1300	Ceramic
DEC-30 M	40	2.2	0-1	1350	Ceramic

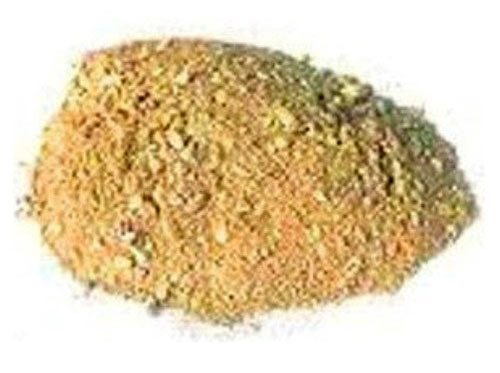

Firecrete Super

Particulars	Normal
General Properties
Service Temp. Degreee c (max)	1400
Grain Size mm (max. )	5
Water Reguired for Casting (%)	10. 5-11. 5
Chemical Properties
al2o3	45
fe2o3	4
Physical Properties
Bulk Density (kg/m3)	2. 1
(dried at 110 degree c for 24 hrs. ) (min)
Cold Crushing Strength (kg/cm2)	250
110 degreee c
800 degree c
1350 degree c	225
1450 degree c
Thermal Properties
Refractoriness Degreee (min)	1564
Permanent Linerar Change (%)	1
at service temp (max. ) 1350 degree c/3 hrs

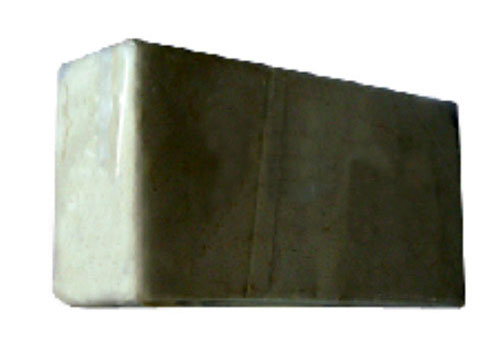

Insulation Bricks

Product brand	ai2 03 % min	fe2 )3 % max.	pce oc min.	ap % min	ccs kg/cm2 min.	plc % at c/hrs	thermal coductivity on hot fact tempr 600 degree c k/cal/m/hr/ degree c	service
CR- 10	20	2	27	65	10	0. 5 at 100 c/5 hrs	0. 2	1000
CF- 11	28	2	27	60	20	0. 5 at 1000 c/5 hrs	0. 25	1100
HF- 13	30	2	30	60	30	1. 5 at 1300 degree c. 5 hrs	0. 3	1300
HFS	40	2	31	80	30	1. 5 at 1350 degree c/5 hrs	0. 3	1350
HFK	50	1. 5	33	60	30	1. 5 at 1450 degreee c/5 hrs	0. 35	1450
HFKS	60	1. 5	35	60	25	1. 5 at 1500 degree c/5 hrs	0. 35	1500

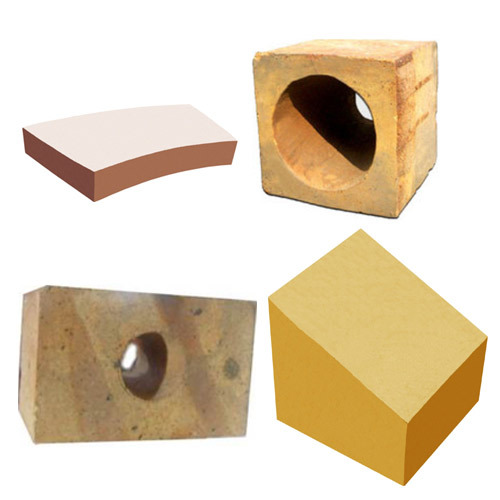

Fire Slabs, Kafa Block & Burner Block

We offer a wide range of Ceramic refractories & Fire Bricks which includes Fire Slabs, Burner Block, Mouth Block, Skew Block etc which are considered as a block of ceramic material and are widely used in masonry construction. Besides these ceramic refractories, are also are extensively used in lining furnaces, kilns, fireboxes, and fireplaces.
